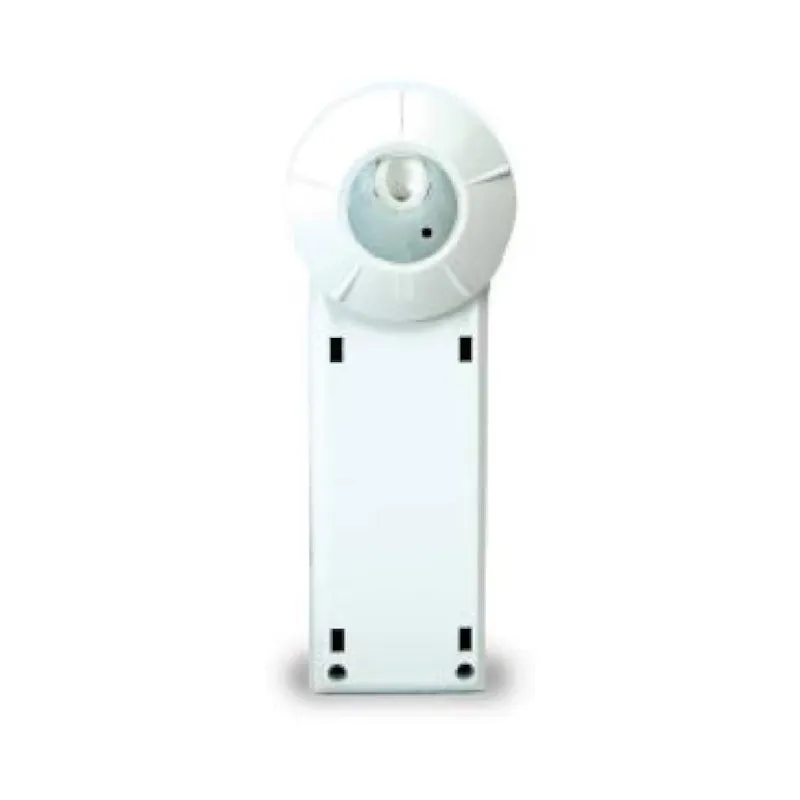

The LMLS-500 is an open loop, multi-zone photosensor that measures the daylight contribution in order to automatically switch or dim up to three zones of lighting.

Features

• Voltage: 24VDC from DLM local network

• Amperage: 7 mA

• Sensor Type: Daylight
• Spatial response: 60º

• Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network

• Test mode override of programmed time delay allows easy verification of selected settings
• Load status verification allows confirmation and testing of controlled load
• Infrared (IR) transceiver for wireless configuration and control
• Compatible with DLM wall switches for manual override, if desired
• LED status indicators
• Mounting options for toplit or sidelit applications

Dimensions

• Length: 3.9"
• Width: 1.5"
• Height: 0.77"
