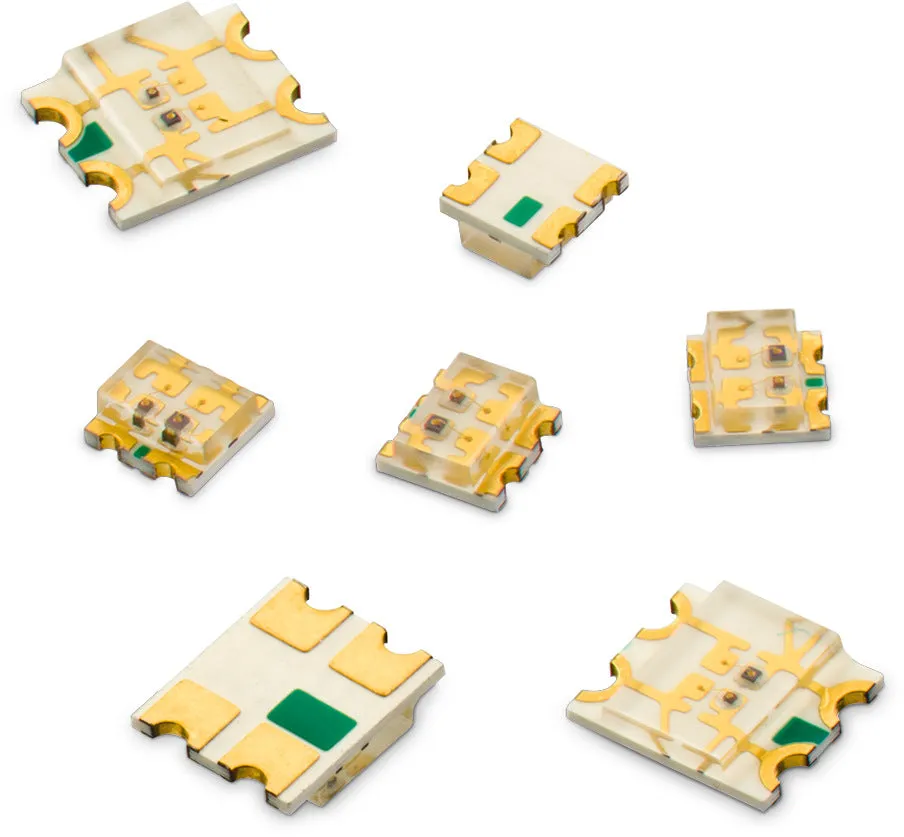

The WL-SBCW series from Wurth Elektronik are a family of bi-colour LEDs. They come in a SMD package with an industry standard footprint (0606 or 1210). These compact LEDs contain two chips within one package, one super red and one bright green.
Despite their small packages, the WL-SBCW LEDs offer high brightness and high efficiency with low power consumption. Suitable applications for the WL-SBCW LEDs include; backlighting, status indicators, front panel indicators, push button backlight and switch backlights.
A wide range of visible light LEDs from Würth Elektronik available in both SMT and through-hole packages. Both water-clear and diffused types are available and all devices feature high luminous efficacy with low energy consumption. The LEDs are suitable for a very wide range of applications which include backlighting for LCDs, indicator and switch illumination, indoor and outdoor message displays, industrial control system and traffic signals, marker lights, directional indicators and decorative lighting.
Technical Details
- LED Colours : Green, Red
- Package Type : 1616 (0606)
- Mounting Type : Surface Mount
- Forward Voltage : 2 V
- Luminous Intensity : 30 mcd, 55 mcd
- Viewing Angle : 130 °
- Series : WL-SBCW
- Forward Current : 30mA
Physical Attributes
- Length × Width × Height(mm) : 1.6 x 1.6 x 0.7mm
- Weight (gm) : 3
- Lens Shape : Rectangle
- Lens Colour : Clear
Features
- Two chips in one package
- Small size
- Industry-standard footprint
- High efficiency
- Low power consumption
- Wide viewing angle
- Small LED package for exceptional brightness
- Packaged in standard tape and reel 7"
- Compatible with automatic placement machine
Applications
- Backlighting applications
- Status indicator
- Front panel indicators
- Push button backlighting
- Symbol and switch backlighting
Package Includes
- 1 x SMT Bi-color Chip LED Waterclear 0606
