[shortdesc]The Grundfos Pressure Manager PM1 is an intelligent pump controller that turns on your pump in accordance with consumption in domestic water supply and booster systems. [/shortdesc] [additional][/additional]

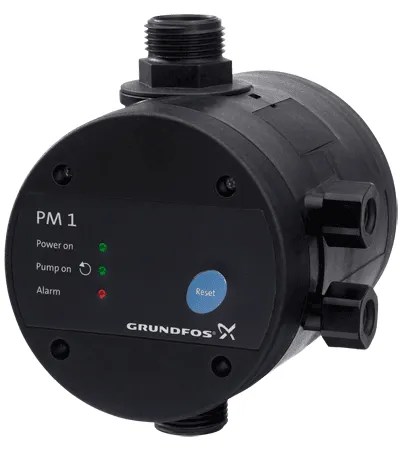

The Grundfos PM 1 pressure manager is designed for automatic start/stop control of Grundfos pumps and other water supply pumps.
The PM 1 is suitable for applications where start/stop of the pump according to consumption is needed. It is the basic control solution offering cut-in at 2.2 bar bar. The PM 1 starts the pump when the start pressure is reached, and the pump keeps running as long as there is a flow.
The PM 1 offers dry-running protection and cycling alarm for increased safety.

• - AS/NZ4020, 1X240V 50 Hz
• - Run and Fault Lights
• - Generator friendly
• - Input pressure tank
• - Rated to a maximum current draw of 6A
• - Dry run protection / Auto reset



Technical:

Approvals and markings: CE ACS C-TICK EAC
Cut-in Pressure: 2.2 Bar
Maximum ambient temperature: 50 °C
Maximum operating pressure: 10 bar
Inlet connect: G1"
Outlet connect: G1"
Inlet thread: External
Outlet thread: External
Pres. Read-out: NO
