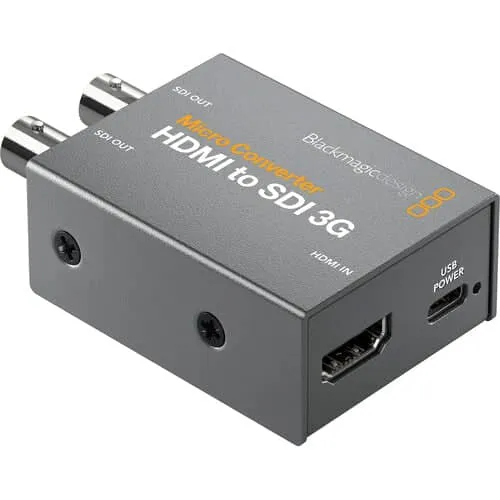

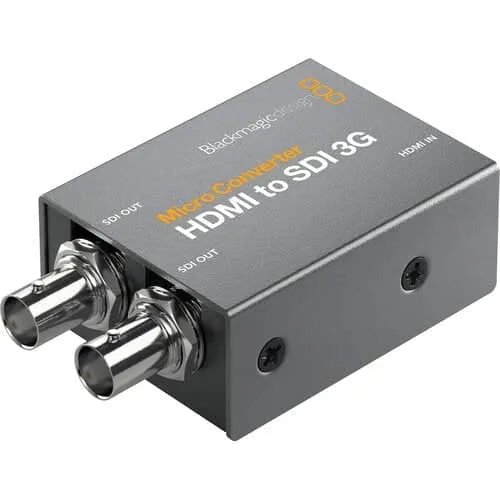

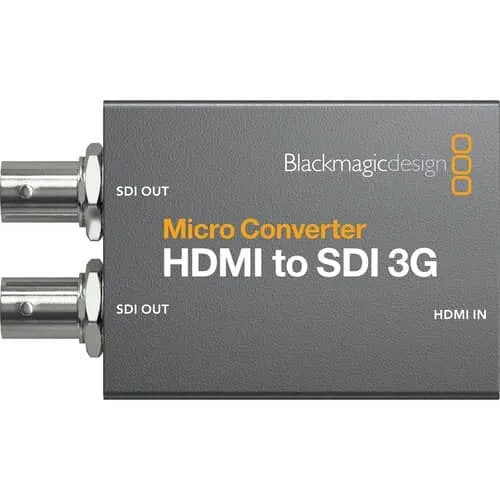

Blackmagic Design Micro Converter HDMI to SDI 3G 20 Pack (no PSU)
Super compact and rugged, the Micro Converter HDMI to SDI 3G from Blackmagic Design enables you to link HDMI cameras or computers to pro-style SDI (BNC) monitors or components. You can also use several units to extend HDMI over long distances using an SDI cable. This compact converter has one HDMI input and two 3G-SD/HD/SDI outputs that can be set to Level A or B. It auto-detects and matches your HDMI input to the SDI output and is compatible with input/output resolutions up to 1080p60. The Micro Converter HDMI to SDI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, and support for a wide range of pro broadcast resolutions including cine-style 48 fps.
This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the HDMI to SDI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using a separately available 100-240 VAC power supply, complete with four international socket adapters.
Features:
Dual SDI Outputs
One HDMI input
Two 3G-SDI outputs
Selectable A and B level formats
Compact, Rugged Design
Robust metal housing and rugged connectors
USB Type-C port for powering via a compatible component like a monitor or laptop
Updatable via the USB Type-C port and your Mac or PC
SDI & HDMI Timecode
HD and SD timecode support
Converts HDMI timecode to SDI
SDI Re-Clocking
Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs
Compatible with SMPTE 259M/292M/296M/424M/425M level A and B
Wider Resolution Support
SDI support from NTSC and PAL up to DCI 2Kp60
HDMI support from NTSC and PAL up to 1080p60
Embedded Audio
Supports embedded HDMI input and embedded SDI output
LED Indicators
LED indicators for video and power signals
Versatile Power Options
Power from a monitor, laptop, or other component using the USB Type-C port
Separately available 100-240 AC power supply with four socket adapters
